Microwave plasma CVD diamond technology

CVD diamond systems, diamond materials, and process development

Carat Systems builds microwave plasma CVD diamond reactors and develops diamond growth processes for electronic diamond, diamond-on-silicon thermal spreaders, UNCD/BEN nucleation, optical diamond, and custom coating applications.

Discuss a project View CVD systems View diamond products

Polished CVD diamond wafer developed by Carat Systems

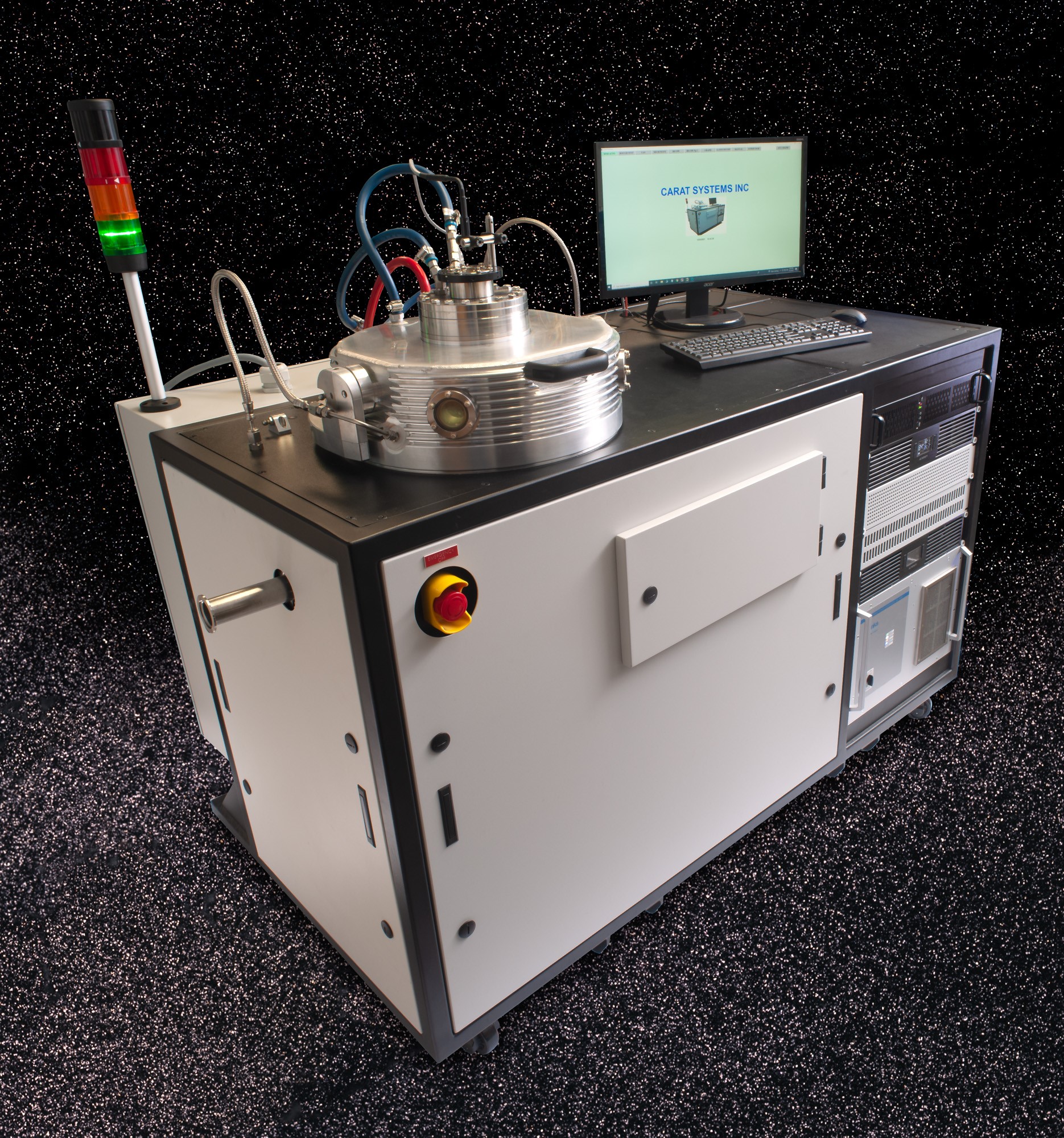

Diamond Manufacturing System, CTS10U for wafer coating, single crystal growth, Bias Enhanced Nucleation, In-Situ 2D film thickness metrology and process optimization for technical applications.

What Carat Systems provides

Carat combines reactor hardware, process knowledge, diamond materials, and metrology development. That lets customers evaluate the process, the material, and the equipment path together.

Microwave plasma CVD reactors

Research and pilot production diamond CVD systems for electronic diamond, optical diamond, thermal management, and gem growth programs.

2.45 GHz MPCVD systems up to 15KW
915 MHz MPCVD systems up to 115KW
High-purity process design
Custom reactor configuration
Control software and upgrades

CVD diamond materials

Polycrystalline diamond wafers, plates, coatings, and diamond-on-silicon development for thermal, optical, electronic, and research applications.

Diamond-on-silicon wafers
CVD diamond plates and windows
Thermal spreader development
Custom substrate coating

Process development and metrology

Diamond process development for film uniformity, bow, Raman quality, nucleation, polishing, and scale-up to customer applications.

UNCD and BEN capability
Thickness mapping and reflectometry
IR thermal mapping development
Technology transfer and training

Applications

Carat works with customers where CVD diamond properties matter: thermal conductivity, optical transparency, chemical resistance, plasma compatibility, radiation hardness, and high electric-field performance.

Semiconductor thermal management

Diamond-on-silicon thermal spreaders

Fusion target coatings

Optical diamond windows

UNCD coatings

BEN nucleation on silicon

High-power electronics

Quantum and research materials

Development capability beyond equipment sales

Carat supports customers who need more than a standard reactor. We help define substrates, process windows, film targets, and metrology plans for demanding CVD diamond applications.

Thin and thick diamond film process development
Thickness uniformity and bow optimization on 100 mm substrates
Diamond-on-silicon routes for thermal spreader applications
Sample coating programs and transition to equipment or production paths

Start with a technical review

Send substrate dimensions, target thickness, material requirements, and intended application. We can help determine whether the next step should be a sample coating, process development program, or reactor discussion.

Send specifications
